Power supplies are needed for every type of electronic equipment and are one of the most important component in a audio electronic equipment such as a DAC.
This project illustrate how can you build a simple low cost unregulated power supply that you can use for a DAC that have an unregulated power supply input from 15V to 18V and a current < 1500mA.
The circuit

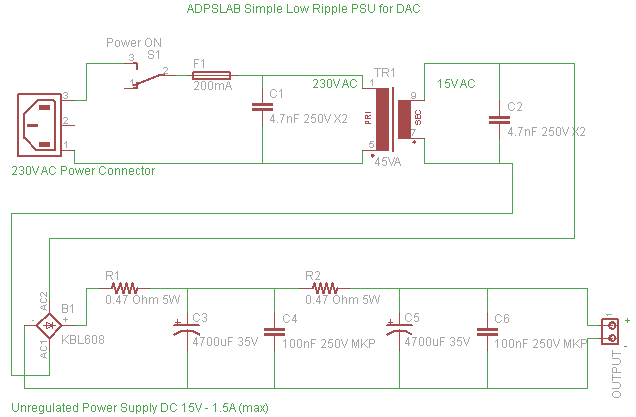

The circuit is very simple and have low ripple and low noise. The power trasformer must be at least 45VA with a secondary voltage of 15V.
The circuit is powered by turning ON main power switch S1 and is overcurrent protected by fuse F1 250V - 200mA slow-blow type. The first capacitor C1 is a X2 type 250V and helps to reduce high frequency noise component wich comes from the 230V power mains. The transformer TR1 is a 45VA with primary at 230V and secondary at 15V AC. The capacitor C2 reduce high frequency noise. The diode bridge rectifier B1 is a 6A current rated KBL608.
Low pass filter network
The decoupling network is a second order RC low pass filter. This network decreases noise transmission of the high-frequency content of any current that does pass through the resistor. The series elements are 2 small value resistors and DC voltage drop is acceptable because the current is low.

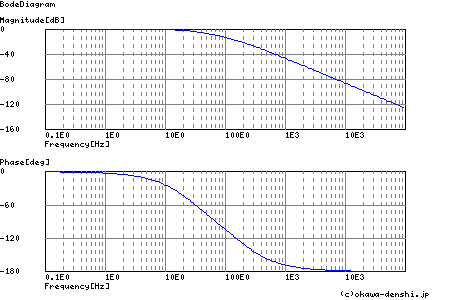

With resistors value R1 = R2 = 0.47 Ohm and capacitors value C3 + C4 = C5 + C6 = 4800uF, the 2nd order RC Low-pass filter have:
|
2nd order RC Low-pass filter |
||
|
Center frequency |
fc |
77.5 Hz |
|
Q factor |
Q |
0.33 |
Technical specifications
The table below see you the measured value in real working condition of the power supply I have designed versus the original one from AUNE AUDIO equipped with AUNE USB DAC MKII SE.
|
Characteristics |
ADPSLAB Simple Low Ripple PSU for DAC |
Original AUNE power supply Model: MINI -- 1501 |
|
AC Main Input |
230V - 50Hz |
230V - 50Hz |
|
Trasformer |
45VA 230Vpri - 15Vsec |
|
|
DC Votage Output (unloaded) |
20.2V (measured value) | 22.8V (measured value) |
|
DC Voltage Output (with 500mA load) |
17.6V (measured value) | 17.6V (measured value) |
|
DC Current Output (max) |
1.5A | 1A |
The table below see you the measured value in real working condition of my AUNE USB DAC MKII SE.
| AUNE USB DAC MKII SE Power Requirements | ||
|
DC Current Absorbed (min) |
USB playback working condition with Headphone Load and Volume to minimum | 130mA at 19.2V (measured value) |
|
DC Current Absorbed (max) |
USB playback working condition with Headphone Load and Volume to maximum | 300mA at 18.5V (measured value) |
Final Test

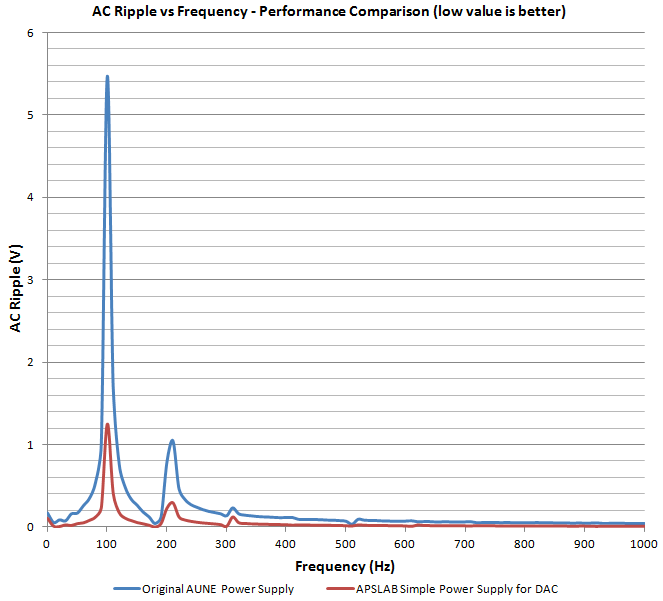

I have measured the Ripple/Frequency values of the original Original AUNE power supply Model: MINI -- 1501 and my ADPSLAB Simple Low Ripple PSU for DAC with a constant current load of 500mA. The figure below show the tests result. The tests values comes from the FFT results of oscilloscope measurements.
